PROCESSING DEVICE
P - SHAFT BASIC - N
P - SHAFT VISE - GAUGE
P - SHAFT VISE - FOOT
GRIP WORKING VISE
MAGNETIC VISE BLOCK
F - SANDING DEVICE
FERRULE SETTER - C
FERRULE SETTER - V

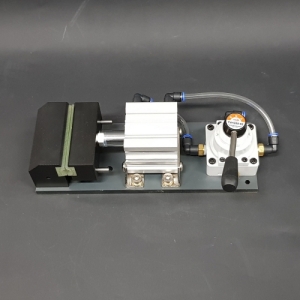

PNEUMATIC SHAFT VISE - N type
FITTERSLAB PNEUMATIC SHAFT VISE - N type can be used independently on the worktable
or mounted on a separately sold stand as a gripper station
Because it uses Korean-made pneumatic cylinders with over 50% higher pressure than other products,
it allows not only grip operations but also tasks such as shaft disassembly and head assembly,
unlike products limited to grip work
This shaft vise provides wide support for all fitting applications
The V-block is made of high-strength urethane, not cheap rubber
It provides anti-slip and strong fastening with a large-diameter air cylinder
Provides a strong grip not only during grip changes but also when detaching the head
Applying a high-pressure pneumatic cylinder,
a pressure setting of about 0.4–0.5 MPa is sufficient for almost all tasks,
but when working with ultra-lightweight female shafts,
Using a slightly lower air pressure of about 0.35 to 0.4 Mpa is allowed
When combined with the separately sold Grip Station stand set,
it can be used as a pneumatic Gripping Station

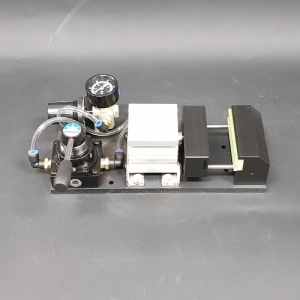

PNEUMATIC SHAFT VISE - R type
FITTERSLAB PNEUMATIC SHAFT VISE - R type is a pneumatic shaft vise
with a gauge attachment that can be used independently on a worktable
or mounted on a separately sold stand as a gripping station
Functionally the same as the standard shaft vise, but it has an adjustable pressure gauge,
allowing pressure to be controlled from the vise equipment instead of the compressor
Convenient for situations where pressure needs to be adjusted frequently
Because it uses Korean-made pneumatic cylinders with over 50% higher pressure than other products,
it allows not only grip operations but also tasks such as shaft disassembly and head assembly,
unlike products limited to grip work
This shaft vise provides wide support for all fitting applications
The V-block is made of high-strength urethane, not cheap rubber
It provides anti-slip and strong fastening with a large-diameter air cylinder
Provides a strong grip not only during grip changes but also when detaching the head
Applying a high-pressure pneumatic cylinder,
a pressure setting of about 0.4–0.5 MPa is sufficient for almost all tasks,
but when working with ultra-lightweight female shafts,
Using a slightly lower air pressure of about 0.35 to 0.4 Mpa is allowed
When combined with the separately sold Grip Station stand set,
it can be used as a pneumatic Gripping Station

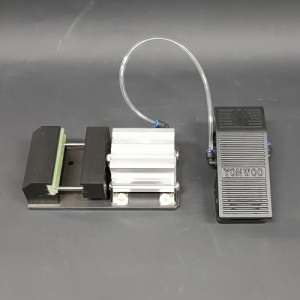

PNEUMATIC SHAFT VISE - F type
FITTERSLAB PNEUMATIC SHAFT VISE - R type is a pneumatic shaft vise
with a foot valve that can be used independently on a worktable
or mounted on a separately sold stand as a gripping station
Functionally the same as the basic shaft vise,
but the operation is controlled by a foot valve instead of a hand lever
This model is suitable for specialized companies with high workloads
In particular, this pneumatic vise is very useful for companies or workshops that frequently change grips
Because it uses Korean-made pneumatic cylinders with over 50% higher pressure than other products,
it allows not only grip operations but also tasks such as shaft disassembly and head assembly,
unlike products limited to grip work
This shaft vise provides wide support for all fitting applications
The V-block is made of high-strength urethane, not cheap rubber
It provides anti-slip and strong fastening with a large-diameter air cylinder
Provides a strong grip not only during grip changes but also when detaching the head
Applying a high-pressure pneumatic cylinder,
a pressure setting of about 0.4–0.5 MPa is sufficient for almost all tasks,
but when working with ultra-lightweight female shafts,
Using a slightly lower air pressure of about 0.35 to 0.4 Mpa is allowed
When combined with the separately sold Grip Station stand set,
it can be used as a pneumatic Gripping Station

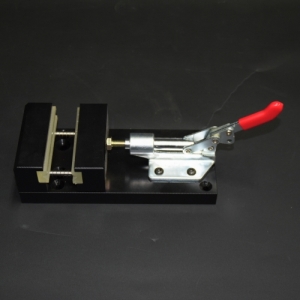

LEVER-ACTION GRIPPING VISE
FITTERSLAB lever-action shaft vise is suitable for general-purpose or simple tasks that
require frequent grip changes
Simply operate the lever to securely lock the club; it is a widely used tool for grip replacement
Designed to be fixed to a workbench for use
Instead of ordinary low-cost rubber,
it is equipped with high-strength urethane blocks for strong compression performance and
powerful clamps that provide strong fixation and semi-permanent durability
Additionally, the main body is made of high-strength resin to prevent scratches or damage to the shaft
caused by operator negligence
Applied an adjustable bolt to fit shafts of all thicknesses
Generally, since the shaft diameter does not change significantly,
it does not need to be adjusted frequently unless under special circumstances

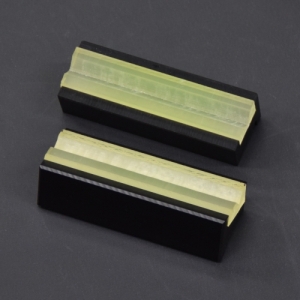

MAGNETIC VISE BLOCK
FITTERSLAB Magnetic vise block is a shaft locking block used with a table vise
Equipped with a certified durable and grippy urethane V-block,
it handles not only grip-related tasks but also applications requiring strong fixation,
such as head removal
A neodymium magnet with strong magnetic force is embedded in the back,
allowing it to attach easily to a vice
Can be attached freely at any angle, making it versatile for various tasks
And can secure at various angles is required,
It is especially convenient for adjusting the putter or injecting melt into the clubhead,
Made from resin that provides sufficient strength while preventing scratches, it is safe to use
Though it looks simple, this is a product that FITTERSLAB highly recommends as a key fitting tool

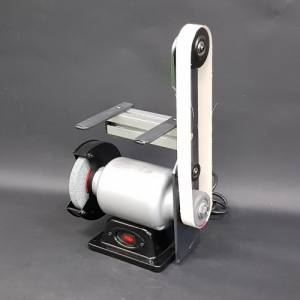

FERRULE SANDING MACHINE
This is a sanding machine used for finishing the club's ferrule.
It is built with a basic structure consisting of a support plate installed
on the essential functions of a sanding machine.
The sanding belt uses a fabric abrasive belt designed to sand only the resin-made ferrule
without affecting the painted parts.
This allows sanding work on woods and hybrids as well as irons
without requiring separate protective procedures.
Additionally, the rotating shaft on the left is equipped with a grinding stone,
enabling concurrent operations such as tip sanding or sole grinding.
Ferrule sanding machines generate a lot of static electricity during use
due to the characteristics of sanding belts.
FITTERSLAB ferrule sanding machine is equipped with an insulation coating on the support plate
to prevent static electricity as much as possible,
but it is recommended to connect a ground wire to the main body to bleed off static electricity.
While the insulating film on the support plate helps block static electricity,
it does not prevent scratches on the shaft.
Wrap several layers of cotton gloves or compression bandages around the plate
to protect it during use, the rotation will be smoother and
the static electricity blocking effect will be enhanced.

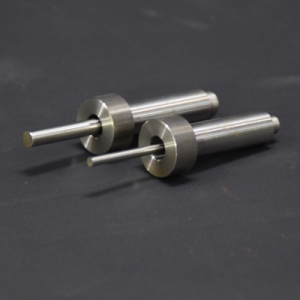

AUTO-ALIGNING FERRULE SETTER
This is a ferrule setter developed by FITTERSLAB,
featuring an automatic aligning function applied for the first time in the industry.
Conventional ferrule setters required finding the center by intuition,
which had the drawback of causing the ferrule to distort or mount crookedly if struck incorrectly.
This product was devised to compensate for these shortcomings.
Equipped with a high-strength heat-treated center sleeve,
it features a structure where the ferrule is automatically centered during installation,
allowing the ferrule to be set with its center aligned naturally
without having to meticulously adjust the center.
Additionally, the center sleeve prevents eccentric phenomena and guides the ferrule to be set vertically,
enabling clean installation without tilting.
This product is manufactured with a standard depth of 29mm,
which is the standard ferrule setting depth for club making,
and can also be custom-manufactured to a desired depth upon request.

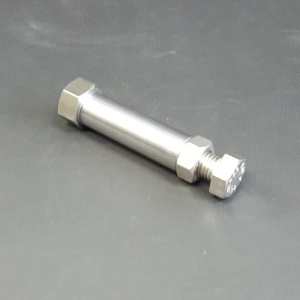

ADJUSTABLE FERRULE SETTER
This ferrule setter is built primarily for structural durability
without adding any secondary functions such as scale markings
The setting depth is adjustable from 18mm to 60mm
