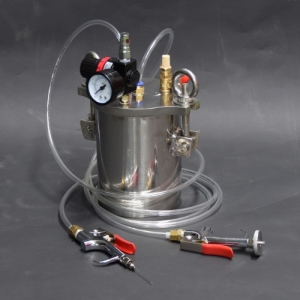

PNEUMATIC GRIP COMPLEX TOOL

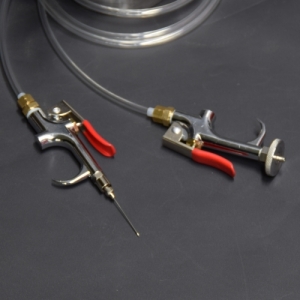

PNEUMATIC GRIP COMPLEX TOOL is a dual-function grip working device that
combines the pneumatic grip-fitting (air-gripping) function, which installs grips using air pressure,
and the grip removing function, which injects solvent.
By simply connecting a pneumatic hose, can conveniently perform all grip-related work.
Pneumatic Grip Fitting Gun & Grip Remover
Multifunctional device that combines the main functions of
pneumatic grip removal and solvent injection for
gripping operations.
The gripping gun operates only pneumatically without
releasing the solvent, while the remov-ing gun injects
the solvent at high pressure

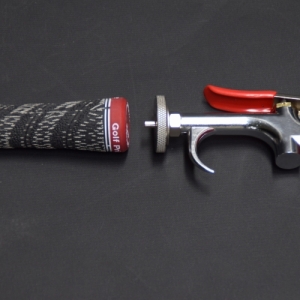

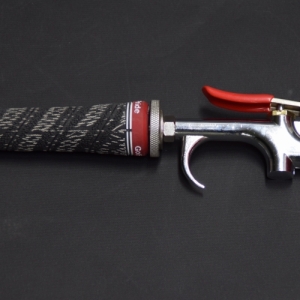

Air Gripping Gun
FITTERSLAB PNEUMATIC GRIP COMPLEX TOOL’s air gripping gun is a pneumatic gun that uses air pressure
to engage or release the grip, releasing only air without any solvent discharge
Device is removed the inconvenient parts of the existing products and applied only
the essential pneumatic control and push plate functions
Air gripping, is a highly fast and convenient, eco-friendly process that does not use
harmful solvents or double-sided tape,
and it also has the advantage of allowing the club to be used immediately upon attaching the grip
*Air gripping is possible on all grip products except a very small number of items
Solvent Injection Removing Gun
When press the lever, the solvent is automatically injected into the inside of the grip,
eliminating the need for manual pumping and reducing the risk of the needle bending or breaking.
* Use standard metal needles *
Unlike traditional grip removers that require expensive, specialized needles and are prone to damage,
this tool uses easily available, inexpensive standard metal needles
(recommended size: 18G–21G)
The lower the number, the thicker the needle (suitable for a strong grip like a putter),
and the higher the number, the thinner the needle,
reducing the risk of grip damage and making it more flexible.
* Lure Lock Connector *
The hook connector is a Lure Lock type
After inserting the hook, turn it clockwise and secure it firmly under high pressure.
FITTERSLAB PNEUMATIC GRIP COMPLEX TOOL is made primarily of metal parts,
and by minimizing parts such as seals that come into direct contact with solvents,
it experiences almost no residual damage

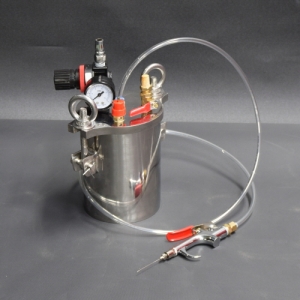

PNEUMATIC GRIP REMOVER
Grip remover is equipment that injects solvent when detaching the grip from the shaft
FITTERSLAB PNEUMATIC GRIP REMOVER solves the common problems of existing grip removers,
such as frequent minor malfunctions and the needle breaking easily during pumping,
and uses a pneumatic system to make grip work faster and more convenient as fitting equipment

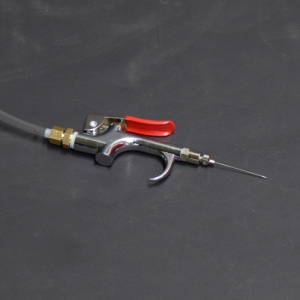

Solvent Injection Removing Gun
When press the lever, the solvent is automatically injected into the inside of the grip,
eliminating the need for manual pumping and reducing the risk of the needle bending or breaking.
* Use standard metal needles *
Unlike traditional grip removers that require expensive, specialized needles and are prone to damage,
this tool uses easily available, inexpensive standard metal needles
(recommended size: 18G–21G)
The lower the number, the thicker the needle (suitable for a strong grip like a putter),
and the higher the number, the thinner the needle,
reducing the risk of grip damage and making it more flexible.
* Lure Lock Connector *
The hook connector is a Lure Lock type
After inserting the hook, turn it clockwise and secure it firmly under high pressure.
FITTERSLAB PNEUMATIC GRIP COMPLEX TOOL is made primarily of metal parts,
and by minimizing parts such as seals that come into direct contact with solvents,
it experiences almost no residual damage

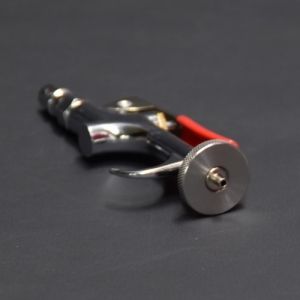

AIR GRIPPING GUN
FITTERSLAB pneumatic grip fitting gun does not use solvents or double-sided tape
A pneumatic gun used for air gripping operations,
attaching or detaching grips using pneumatic force
FITTERSLAB pneumatic grip fitting gun eliminates the inconvenient aspects of using existing products
Only the essential pneumatic control and push plate functions have been applied
Air gripping, which mounts or removes grips pneumatically, is very fast and convenient, and,
Not only is it an eco-friendly job that does not use harmful solvents or double-sided tape,
It has the advantage that the club can be used immediately upon attaching the grip
*Air gripping is possible on all grip products except a very small number of items

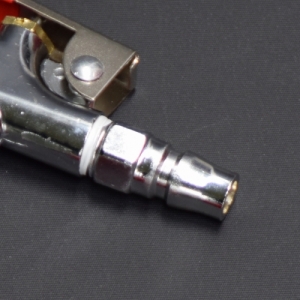

COUPLING
coupling method for connecting pneumatic coil hoses
convenient when the hose needs to be attached and
detached frequently

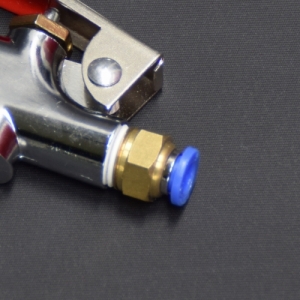

ONE TOUCH FITTING
When connecting pneumatic hoses directly without
using a coupler, there is no need for coupling accessories,
making it easy to handle and convenient

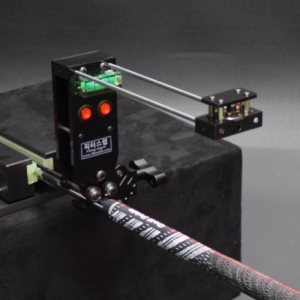

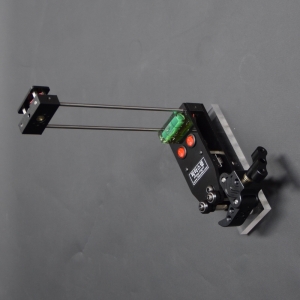

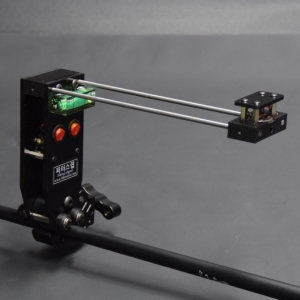

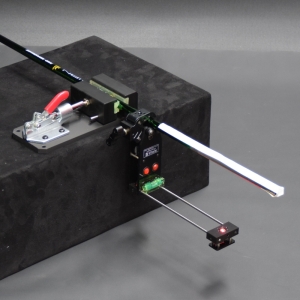

LASER GRIP-ALIGNER
FITTERSLAB Laser Grip Aligner is a laser device equipped with FITTERSLAB's patented method
to accurately indicate the center line of a golf club.
When building or fitting golf clubs, aligning the center line of the club is extremely important.
If the center line is not set accurately, the directional alignment between
the club head and the grip will be misaligned, making good results impossible.
FITTERSLAB has devised the Laser Grip Aligner to perfectly meet this need.
Since FITTERSLAB Laser Grip Aligner is mounted directly onto the shaft to align the center line,
accurately indicates the center line regardless of the shaft thickness,
type, or the condition of the shaft-fixing equipment.
If the center line during club building is incorrect,
the quality of the finished club is inevitably compromised.
This is an area where even experienced club fitters easily make mistakes,
and many manufacturing errors occur even in finished club products.
FITTERSLAB Laser Grip Aligner is a device that combines high-precision processed laser lines
and a patented mounting method to mount directly onto the shaft,
accurately finding and indicating the center line.
Key Features of FITTERSLAB Laser Grip Aligner

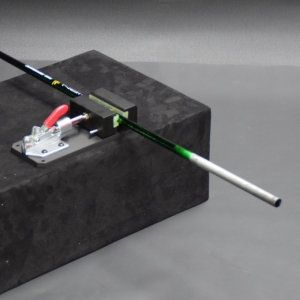

A. Laser Lines from Precision-Processed Lenses
The fitting aligner from FITTERSLAB is equipped with independent laser modules
—composed of a laser light source and precision-processed lenses—projecting in both directions.
Because the modules in each direction project at set angles,
it ensures precise indication while minimizing areas where the operator's vision
could be directly or indirectly exposed to the laser.
The laser facing the head is built with an projection angle sufficient to cover the head,
while the laser facing the grip is built with an ultra-wide-angle precision lens to fully cover the entire grip.

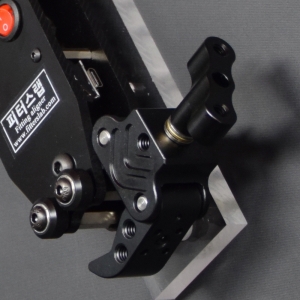

B. Fast and Firm Fastening by Crab Holder
The crab holder that secures the Laser Grip Aligner is manufactured
through CNC machining and utilizes thrust bearings, making it
a component with fast, smooth, and firm fastening power.
In particular, the fastening speed
—which is twice as fast as ordinary clamps—is fast enough that
users feel no particular inconvenience, and the equipment finds
and indicates the shaft's center line simply by tightening it.
Even inventors who dislike the hassle of assembly do not experience
any particular inconvenience when installing it.
Because there is no need for repeated inspection or modification,
this is equipment that users end up using continuously.span>
C. High-Capacity Lithium-Polymer Battery and Dual Protection Circuit
The Laser Grip Aligner from FITTERSLAB has a built-in
high-capacity lithium-polymer battery and a dual protection circuit.

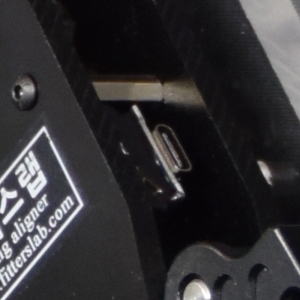

It charges with a standard C-type mobile phone charger,
and a single charge provides up to several months of use.
Usage Methods and Applications of the Laser Grip Aligner
*The FITTERSLAB laser grip aligner does not adjust the club to the laser line;
It is a convenient method of securing the club and adjusting the laser to the club.

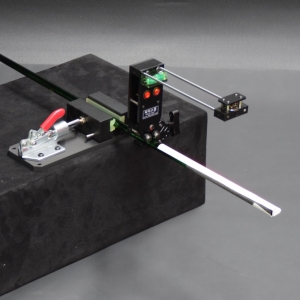

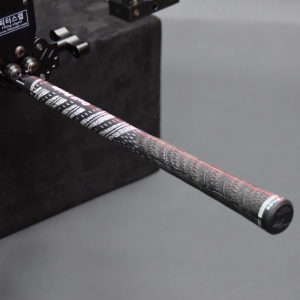

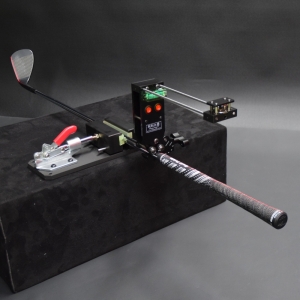

A. Grip Installation
1. Secure the club head in an upright position in the shaft vise and apply double-sided grip tape.
2. Installl the Laser Grip Aligner onto the shaft so that it is not loose and will not rotate.

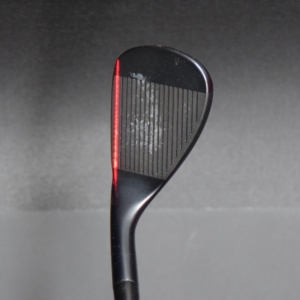

3. While slowly rotating the Laser Grip Aligner, align the laser line with or parallel to the scoreline of the head,
and the grip center line will be indicated on the grip installation area.
B. Additional Functions (Logo Down / 180-Degree Rotation)
This function is an additional convenience feature of the Laser Grip Aligner.
When building a club, the shaft logo or flex indicator is generally positioned toward the heel side,
FITTERSLAB Laser Grip Aligner allows to easily set a 180-degree rotation position using a level.
1. Position the face of the shaft with the logo, lettering, or flex indicator facing upward.
2. Mount the Laser Grip Aligner facing downward, level the bubble level, and tighten it.
3. With the Laser Grip Aligner mounted, turn the shaft 180 degrees and secure it,
then install the grip or mark the laser line center line and proceed with the build according to the center line.
At this time, leveling is not required.
Precautions for Use
1. Be careful not to subject the Laser Grip Aligner to strong impacts or pressure.
2. The Laser Grip Aligner features a built-in lithium-polymer battery.
* Charge it using a standard C-type cable mobile phone charger.
The indicator turns red while charging and changes to a blue lamp when fully charged.
* Please unplug the cable once fully charged. If swelling or any abnormal phenomenon occurs,
please inspect it before use.
* Due to the characteristics of lithium-polymer batteries, impacts, overcharging,
or over-discharging can cause malfunctions.
3. Because the upper metal rod also acts as an electrical wire, if a short circuit occurs,
the dual protection circuit will activate and temporarily cut off the power.
If it is cut off, turning the switch off and back on will restore normal operation.
4. If the shaft is excessively bent or abnormal, usage may not be possible.
